Nondestructive Circular Electric Connector for NDT test equipment
Details：
Y16 series of circular connectors are widely used for connection between serious kinds of electrical equipment. Center screw coupling, used conveniently, with rain, sand and salt-spray proof functions, and the error interpolation agencies.
Conditions of use environment
Relative temperature : -55 ° C ~ +125° C
Relative Humidity : when40 ± 2 ° C, up to 92% ± 98%
Operating Pressure : 101.33kPa ~ 6.67Pa
Sin Vibration: vibration frequency 10Hz ~ 2000HZ, acceleration 196m/s2
Impact : acceleration 980m/s2
Collision : acceleration 392m/s2
Rain resistance：rainfall 5mm/min
The main technical characteristics
|
|
1 |
1.3 |
1.5 |
2.5 |
3.5 |
|
|
5 |
7 |
10 |
25 |
60 |
|
|
≤5 |
≤4 |
≤3 |
≤1 |
≤1 |
|
Standard air pressure |
|
High-temperature conditions |
|
≥1000MΩ |
≥20MΩ |
≥500MΩ |
|
|
|
|
High-temperature conditions |
|
AC 1500Vrms |
AC 150Vrms |
AC 500Vrms |
AC 1500Vrms |
Sealing (only closed sockets)
Not more than ordinary socket 98.07kPa
Seal socket less than 1 × 10-5Pal / s

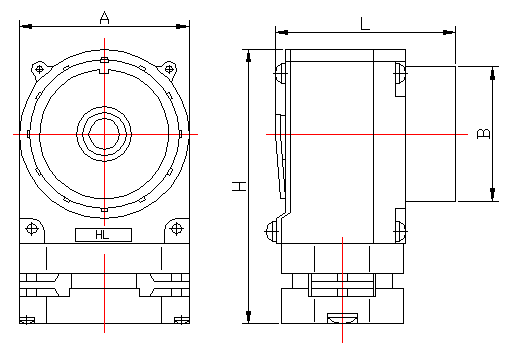

Y16shape and installation size
|
Shell NO. |
Categories |
Type |
A |
B |
H |
L |
Inside diameter of sealed circle of the cable |
|
18 |
1804
1805
1812 |
P |
38 |
φ28 |
69.5 |
42 |
φ12 |
|
H |
48.5 |
φ12.5 |
|
24 |
2404
2414
2430
2438
2448 |
P |
48 |
φ38 |
77.5 |
48.5 |
φ18 |
|
H |
55 |
φ22 |
|
2416 |
P |
71.5 |
55 |
φ22 |
|
2416I |
H |
75.5 |
φ22.5 |

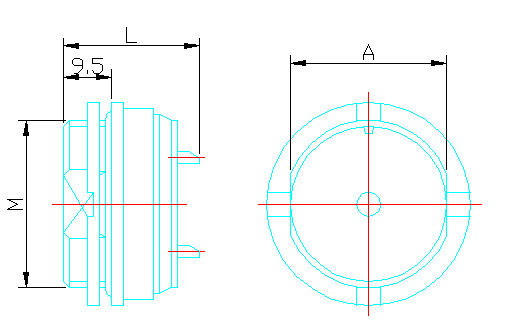

Nut fixed socket receptacle
|
|
|
M |
A |
L |
|
18 |
1804
1805
1812 |
M32×1.5 |
φ30-0.13 |
28 |
|
26.5 |
|
24 |
2404
2414
2430
2438
2448 |
M42×1.5 |
φ40-0.16 |
26.5 |

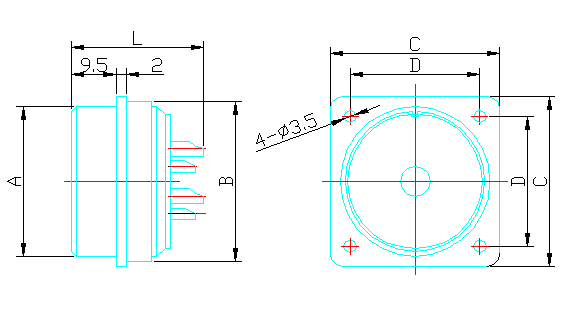

Square flange receptacle
|
|
|
A |
B |
L |
C |
D |
|
18 |
1804 |
φ32 |
φ33 |
28 |
38 |
30±0.125 |
|
1812 |
26.5 |
|
24 |
2414 |
φ42 |
φ43 |
26.5 |
47 |
38±0.125 |
|
2416 |
29 |
|
2430 |
26.5 |

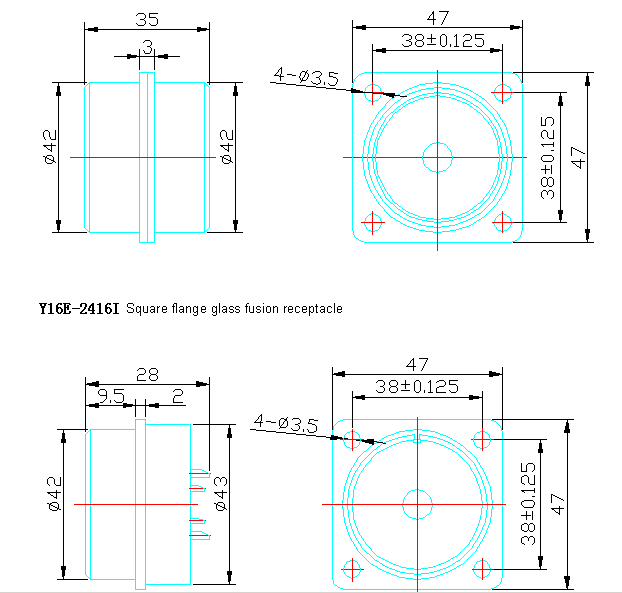

Y16-2416Square flange wall cut through receptacle

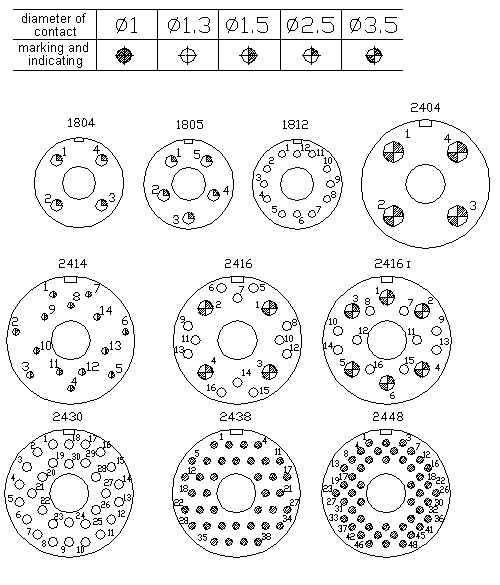

Y16 arrangement Holes
Implementation of standards Q/321283LSB09-2006 "Y16-round series Screw Connector detailed specifications"
Model signs Y 16 P - 24 30 Z J 10
|
代号 |
Y |
16 |
P |
- |
24 |
30 |
Z |
J |
10 |
|
序号 |
① |
② |
③ |
|
④ |
⑤ |
⑥ |
⑦ |
⑧ |
① Circular Connector
② Design NO.
③ Categories：P-Plug thin shell，H-Plug thick shell，E-glass fusion (receptacle)
④ Shell NO.：18，24
⑤ Q’ty of contact：04,05,12,14,16,16Ⅰ,30,38,48
⑥ Connector categories：T-Plug, Z- receptacle
⑦ Contacts type：J-pin, K-jack,S-jack
⑧ Mounting styles：10-square flange,13-Square flange wall cut through receptacle,14-Nut and tight
