NDT Circular Electric Connector for Nondestructive test equipment
Details：
Y4 series small circular connectors are widely used for the connection among a variety of electronic equipment, and electrical equipment.
Their coupling styles are thread coupling. They are easy to use, receptacle sealed, light weight. Mounting styles have flange and cable type.
|
conditions of use environment
Relative temperature : -55 ° C ~ +125° C
Relative Humidity : when40 ± 2 ° C, up to 92% ± 98% Operating Pressure : 101.33KPa ~ 6.67kPa
Sine Vibration : vibration frequency 10～2000Hz acceleration 196 m/s2
Impact : acceleration 980 m/s2
Collision : acceleration 392 m/s2
Constant Acceleration : acceleration 686 m/s2
The main technical characteristics
|
standard air pressure |
|
|
|
≥1000MΩ |
≥50MΩ |
≥500MΩ |
|
standard air pressure |
AC 750Vrms |
|
|
AC 200Vrms |
Sealing (only closed sockets) 0.2MPa

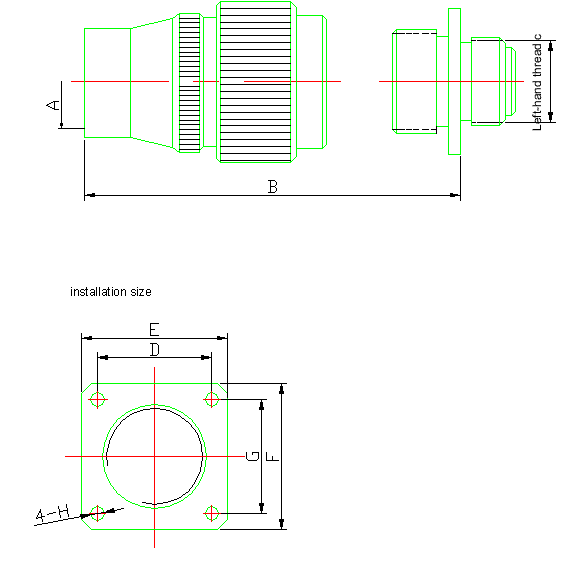

Y4shape and installation size
| |
|
Q’ty of contact |
3 |
4 |
5 |
7 |
|
A |
Φ6 |
Φ6 |
Φ8 |
Φ8 |
|
B |
26.5 |
26.5 |
27.5 |
27.5 |
|
C |
M10×0.75左 |
M10×0.75左 |
M12×1左 |
M12×1左 |
|
D |
12 |
12 |
13.2 |
13.2 |
|
E |
16 |
16 |
18 |
18 |
|
F |
16 |
16 |
18 |
18 |
|
G |
12 |
12 |
13.2 |
13.2 |
|
H |
Φ1.8 |
Φ1.8 |
Φ2.2 |
Φ2.2 |

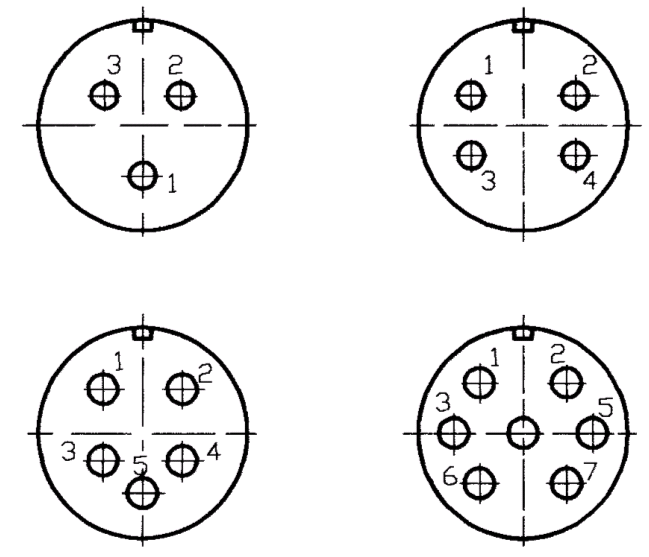

Y4Contacts Hole arrangements
Note : This map -- connector jacks face to face up to a interpolation map
Model signs Y 4 - 3 Z J B M
|
Codenamed |
Y |
4 |
- |
3 |
Z |
J |
B |
M |
|
NO. |
① |
② |
|
③ |
④ |
⑤ |
⑥ |
⑦ |
① Circular Connector
② design NO.
③ Q’ty of contact : 5th
④ Connector categories : T-Plug, Z-receptacle
⑤ Contacts type : J-pin, K-jack
⑥ mounting styles : L-cable - and B-flange Disk
⑦ socket sealed | | |
