NDT Circular Electric Connector for Nondestructive test equipment

Details：

Generality

The product is equivalent to MIL-C-38999 I, its prominent characteristics are high density, small size, light weight, 7 ~ 129 cores, nine arrangements of the hole positions, other features are basically the same with XCE Series. Equivalent XCF series ,with the same model plug and receptacle can match to each other.

Main technical performance　

——Rated voltage and resistance voltage : Working environment Rated voltage V Withstand voltage V state at room temperature 250 1000 Moisture state 250 750 Low pressure conditions （1kPa） 115 200 　 ——Insulation resistance :MΩ Grading work Standard conditions High temperature Moisture Insulation Resistance ≥500 ≥100 ≥20 　 ——Shell continuity between Aluminum alloy casing ≤5mΩ 　 3. Environmental performance :　 ——Using Temperature : -55 ° C to +200 ° C ——Relative Humidity : 40 ° C, 98% ——Work height : 30000m ——Vibration : frequency10～2000Hz  Acceleration 196m/s2 ——Impact :Acceleration 980m/s2 ——Constant Acceleration :980m/s2 Connector also has a good defense, wet-spray, anti - fungus, anti-drenched, anti-dust properties.

　

1. Mechanical properties :

——Shell : high strength aluminum alloy

——shell coating :

Shield Coating : Electroless nickel

——Insulation : thermosetting material

——Contacts : gold-plated copper alloy

——Mechanical life : 1000

　

　

2. Electrical performance :
——Contacts contact resistance and rated current

Contacts specifications : Ф0.635mm

Contact resistance : ≤ 0.025 Ω

Current rating : 1A

　

　

　

　

　

　

　

　

　

　

　

　

　



















Y55F series models named :







Note :

1. when represent the connector, marks of the models adopt fraction. receptacles marking writing numerator, plugs marking Writing denominator, separated by a slash.
2. Plug and socket type directly marked on the products, electric connector model for the using of users’ orders and factory production, management.
3. To the choused collocated accessories for plugs (receptacle), can add a "+" after its Model and then write the election of the accessories (specific requirements see "Selection of the accessories ").

For example :
* Series 14 Y55F side pallet jack socket contact number for the 10 core, shielding, galvanized iridescence passivation, N bond spaces, the models : Y55F14F10KP
* Y55F Series 14-pin plugs installed, the contact number for the 10 core, shielding, galvanized iridescence passivation, N bond spaces, the models : Y55F14T10ZP
* Connector model : Y55F14F10K1P / P
　

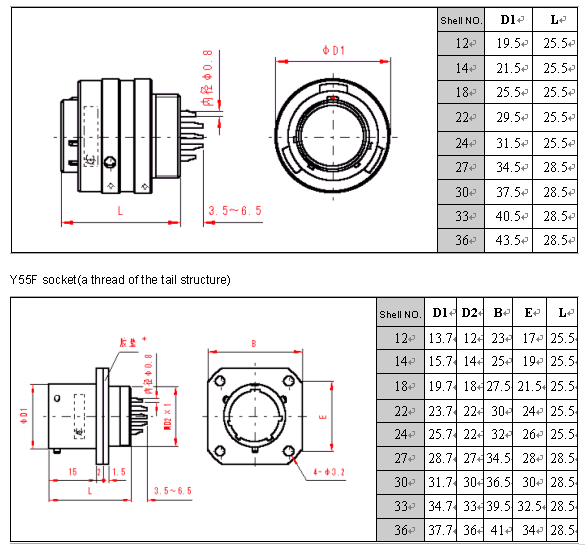

shape size
　

Y55F Plug
