NDT Circular Electric Connector for Nondestructive test equipment
Details:
Generality
On the basis of the arrangement of the joint points of Y55 serious, maintain the same electrical performance, clearance of the press holes, with the same cores, smaller and lighter than Y55; The density of the contact points of this serious product are equivalent to the MIL-C-26482 Series 1. * Quick bayonet coupling, ,reliable connecting and anti-vibration resistant * five-key guide to avoid mis-mating * To avoid the mis-mating of the connector with the same shape, there are five key positions to be choused * Highly reliable shuangqumianxianhuang jack make connector inserted soft, small contact resistance * connecting style of Plug and receptacle is welding * Plugs, receptacle can install pins also can install holes * Equivalent to XCE Series ,with the same models can match with each other.
Main technical performance
——Rated voltage and resistance voltage :
|
|
|
state at room temperature |
500 |
1500 |
|
500 |
1125 |
Low pressure conditions (1kPa) |
250 |
300 |
——Insulation resistance :MΩ
——Shell continuity between
Aluminum alloy casing ≤2.5mΩ
3. Environmental performance :
——Using Temperature : -55 ° C to +200 ° C
——Relative Humidity : 40 ° C, 95%
——Work height : 30000m
——Vibration : Frequency10~2000Hz acceleration 196m/s2
——Impact :acceleration 980m/s2
——Constant Acceleration :980m/s2
Connector also has a good defense, wet-spray, anti - fungus, anti-drenched, anti-dust properties. |
1.Mechanicalproperties :
——Shell : high strength aluminum alloy
——shell coating :
Shield Coating : Galvanized iridescence Army green or passivation, chemical nickel plating
Non-shielding coatings : a black anodized
——Insulation : thermosetting material
——Ray closures and ring : silicon rubber material
——Contacts : copper alloy plated with gold or silver
——Mechanical life : 1000
2. Electrical performance :
——Contacts contact resistance and rated current
Contacts specifications mm |
|
A |
|
Ф1.0 |
≤5 |
5 |
Ф1.3 |
Ф1.5 |
≤2.5 |
10 |
Ф1.8 |
Ф2.0 |
≤1.25 |
20 |
Ф2.5 |
Ф3.0 |
≤0.75 |
40 |
Ф3.2 |
Y55E series models named :

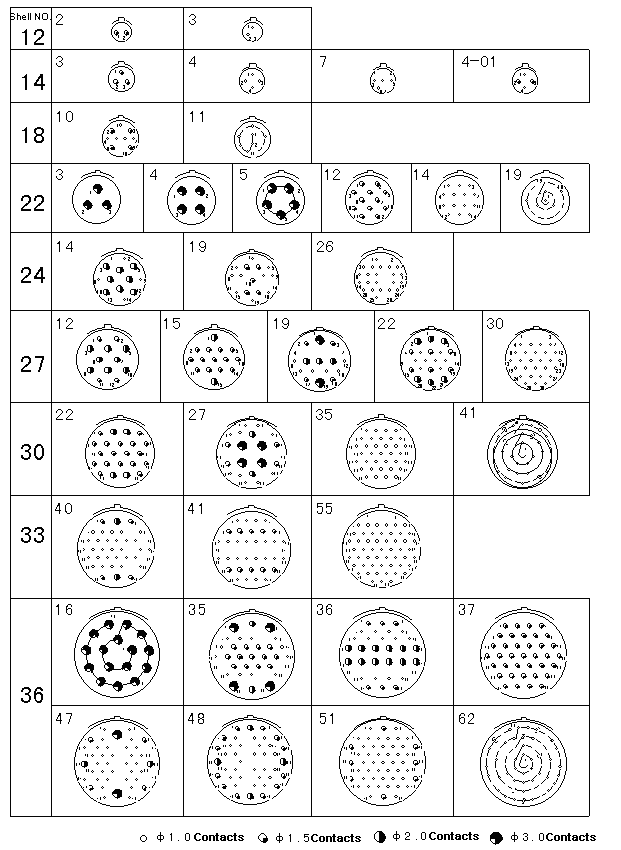

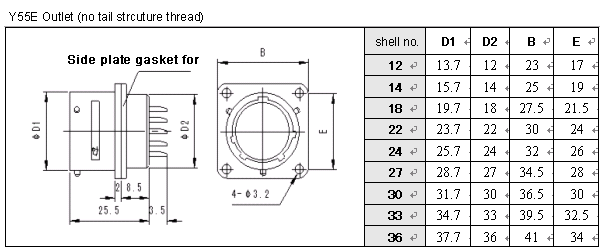

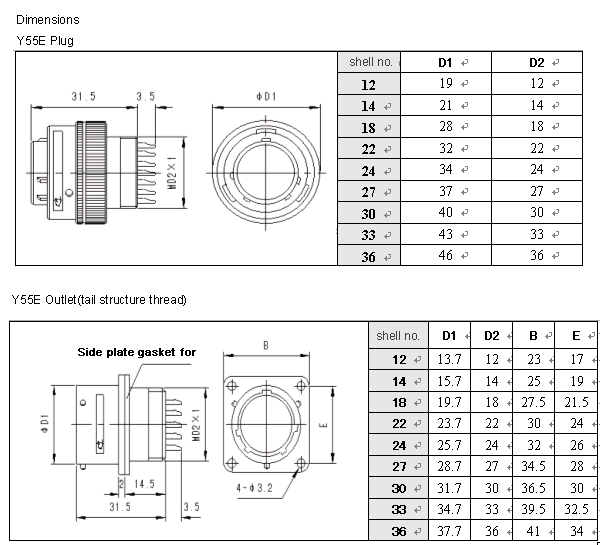

1、Non-sealing plug socket model named
Note : To ensure compliance with a variety of cable matching, there are many dedicated rear annex to choose from, the details please see "Y55 and its derivative series electric connector annex."
For example : 1. Y55E series of 14 gold-plated side pallet jack socket (a thread tail), the number of contacts for the four movements, Shell Chemical nickel plating, N-bit keys, model : Y55E14F4K1P1 2. Y55E series installed gold-plated 14-pin plugs, contact number for the four movements, Shell Chemical nickel plating, N-bit keys, model : Y55E14T4Z1P1

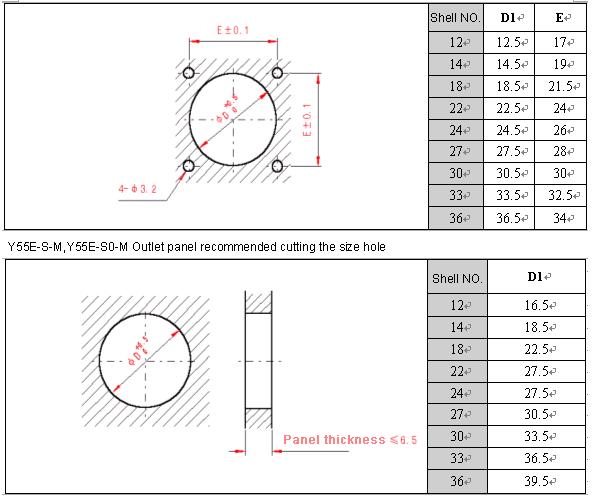

2、Wear enclosed wall adapter model named Block
|
