NDT Circular Electric Connector for Nondestructive test equipment
Details：
Generality
The product adopted a number of new technologies, new techniques, new materials in recent years, can replace the Y55-Connector completely.
Its outstanding abilities :
* Fast and safe connecting system
* Reliable sealing system :
The design about the seal between the first receptacle make the contact isolated from the external environment and to form a good sealing, powerful ability about water and steam proofing.
The design about the sealed layer in the first receptacle make the connection has the ability of air proofing, can bid 0.3 atmospheric pressure. The main technical ability conform to GJB2889. is equivalent to XCG serious and can cooperate with the corresponding receptacle which has the same type.
Main technical performance
|
——Rated voltage and resistance voltage :
|
|
|
|
|
state at room temperature |
500 |
1500 |
|
|
500 |
750 |
Low pressure conditions （1kPa） |
150 |
200 |
——Insulation resistance :MΩ
——Shell continuity between
Aluminum alloy casing ≤2.5mΩ
3. Environmental performance :
——Using Temperature : -55 ° C to +200 ° C
——Relative Humidity : 40 ° C, 95%
——Work height : 30000m
——Vibration : Frequency 10～2000Hz acceleration 196m/s2
——Impact :acceleration980m/s2
——Constant Acceleration :980m/s2
——Airtightness :35.5KPa
Connector also has a good defense, wet-spray, anti - fungus, anti-drenched, anti-dust properties. |
1. Mechanical properties :
——Shell : high strength aluminum alloy
——shell coating :
Shield Coating : Galvanized iridescence Army green or passivation, chemical nickel plating
Non-shielding coatings : a black anodized
——Insulation : thermosetting material
——Ray closures and ring : silicon rubber material
——Contacts : copper alloy plated with gold or silver
——Mechanical life : 1000
2. Electrical performance :
——Contacts contact resistance and rated current
Contacts specifications mm |
|
A |
Gold wire diameter tube mm |
|
Ф1.0 |
≤5 |
5 |
Ф1.4 |
|
Ф1.5 |
≤2.5 |
10 |
Ф2.0 |
|
Ф2.0 |
≤1.25 |
20 |
Ф2.5 |
|
Ф3.0 |
≤0.75 |
40 |
Ф3.0 |
|
Ф4.5 |
≤0.35 |
65 |
Ф4.5 |
Y55G series models named :
Note
1. when represent the connector, marks of the models adopt fraction. receptacles marking writing numerator, plugs marking Writing denominator, separated by a slash.
2. Plug and socket type directly marked on the products, electric connector model for the using of users’ orders and factory production, management.
3. To the choused collocated accessories for plugs (receptacle), can add a "+" after its Model and then write the election of the accessories (specific requirements see "Selection of the accessories ").
For
*Y55G Series 14 silver side pallet jack socket contact number for the four movements, shielding, tail-threaded, galvanized iridescence passivation, N bond spaces, the models : Y55G14F4KD
*Y55G Series 14 loaded silver pin plugs, contact number for the four movements, shielding, a tail of thread, galvanized iridescence, N-bit keys, model : Y55G14T4ZP
* Connector model : Y55G14F4KD / P

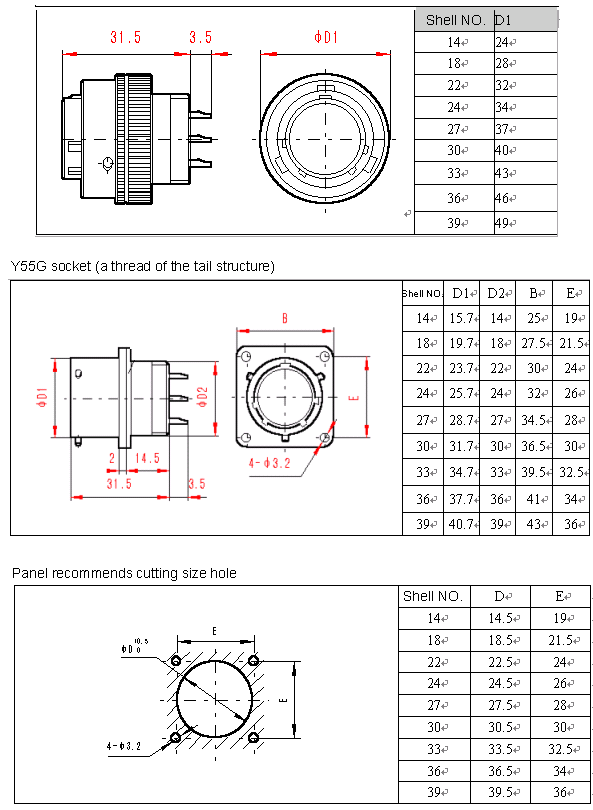

Y55G Plug
