NDT circular electric connector for Nondestructive test equipment
Details：
Y-3 serious straight insert circular sealed connectors are widely used to connect the current of a variety of electronic
equipment.
They have straight insert locking and straight pull separation and so on merits. Locking is reliable, and easy to use.
They are divided into common glue sealed and glass sealed two types and their mounting styles are: flange and cable.
conditions of use environment
Relative temperature -40～+85℃
Relative Humidity : when40 ± 2 ° C, up to 92% ± 98%
Operating Pressure 101.33KPa ~ 6.67Pa
Sine vibration 10～2000Hz Acceleration 147m/s2
Impact acceleration 686m/s2
Centrifugal power acceleration 245m/s2
The main technical characteristics
Sealing
general sealed socket 0.3MPa
glass fusion receptacle Y3－19ZJHR、Y3－31ZJHR no more than 1.33×10-4Pal/s
glass fusion receptacle Y3－24ZJHRno more than 1.33×10-5 Pal/s
Mechanical life-span 300

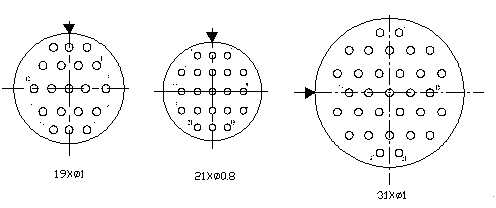

Y3shape and installation size
