NDT pulling/pushing Circular Electric Connector

Details:

Y57 series pulling/pushing circular electric connector is a new type quick insert and separate connector which combine the merits of the bayonet locking and quick insert and separate connectors. They have rapid operation, safety and reliability and so on characteristics which are the ideal products those can replace circular electric connector. Conform to the general norm of GJB2905 good resistant environment with push / pull-type rapid separation Circular Connector.

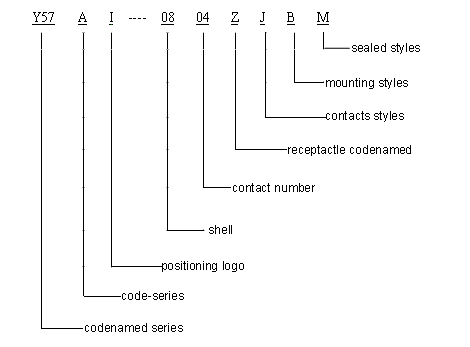

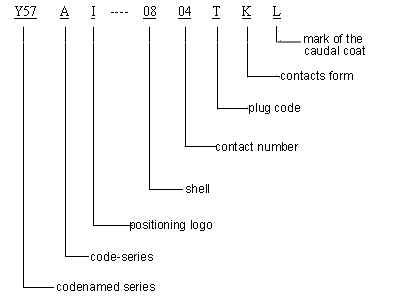

Products labeled code

Plug


Socket


Categories
Code-series
Categories
A
B
Significance
Diameter Φ1 Welded Shell Electroless nickel
Diameter Φ1.5Welded Shell Electroless nickel

Positioning logo:
Its primary key and a secondary form of bond angle, may inject up.
The second main and auxiliary keys bond angle form.

Case No.:
Shell connector relative size of a logo into 08,10,12,14,16,18,20,22,24,26

Contact Number:
Connector contact with the number of pieces of identification, see Contacts specific type spectra.

Plugs and sockets logo:
T-representative Plug    Z-socket representatives

Contacts form:
J-pin representatives    K-jack representatives

Mei enclosures forms

Symbols
L
L1
L2
Significance
Folder plate line
Ground-clamping
Waterproof crimping

Socket installation form

Symbols
B
L
S
Significance
Panel installation
Cable
Wear wall

Seal
M - silicone seal    H-sealed glass

Use environmental conditions and technology indicators
Use of the environment
Temperature :-55~+125 ℃
Relative humidity :40±2℃时,95±3%
Working Pressure :1.33Pa~101.3KPa
Vibration :Sine Vibration :10~50HZ时,Amplitude1.5mm;
50~2000HZ,Acceleration 196m/s2
Impact : Acceleration 980m/s2
Salt Spray :48h,96h;

Specifications
contact resistance
Pin-diametermm
Φ1.0
Φ1.5
Φ2.5
Φ3.5
Φ5.0
Φ7.0
Φ10.0
contact resistance(MΩ)
≤5
≤3
≤1.5
≤1
≤1
≤0.5
≤0.4

Contacts rated current

Contacts interpolation diameter distribution
(mm)
1.0
1.5
2.5
3.5
5.0
7.0
10.0
Contacts rated current
(A)
5
10
25
50
75
100
200

Insulation resistance:
       standard pressure:4000MΩ  high temperature:1000 MΩ   humidity:100 MΩ

Media Pressure:
       standard pressure:1500V   lower air pressure:200V

Socket hermetic:
       Rubber : leakage rate not more than one Pa.cm3 / S
       Glass sealed : leakage rate is not more than 1 × 10-4Pa.cm3 / S
Mechanical life-span 500

pin shape size


Shell NO.
08
10
12
14
16
20
22
24
26
D
19.5
21.5
23.5
26
28
33.5
36.5
39.5
43
ΦD­­­1
6
8
8
10
12
14
15
17
18

receptacle shape size


Shell NO.
08
10
12
14
16
20
22
24
26
D
21
22
24
26
27
33
36
39
42
S
15
16
18
20
21
26
28
31
33
t
1.5
1.5
1.5
1.5
1.5
2.0
2.0
2.5
2.5
ΦD­­­1
14.5
16.5
18.5
20.5
22.5
27.5
,
30.5
33.5
36.5

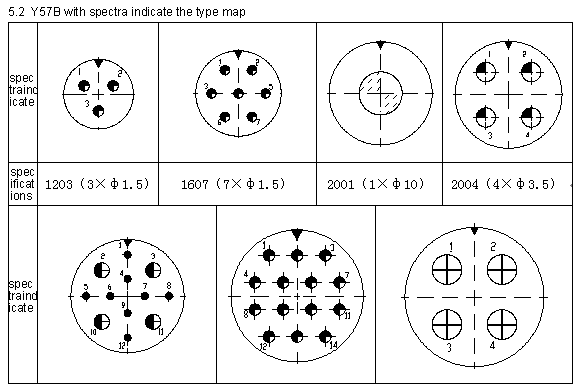

Series-spectrum (from the surface to see inserted a jack-insulator - plate installation)

Operation explanation
When plug and receptacle inserted with each other, push locking covering tightly then rotate to the right direction, after your hands relaxed, watching the locking cover, make the red warning line covered by it, now it is under locking state, inserting is completed. When separate plug and receptacle, rotate to the left direction while push the locking covering award, the locking covering will rebound automatic. Now, it has been unlocked, the plug can be separated to make the separation come into true.
