NDT Circular Electric Connector for Nondestructive test equipment
Details：
Y23 series resisting environment and quick separation circular connectors are included in MIL-C-38999 (or GJB599A) Series IV products. They can make cooperation with similar products at home and abroad which have the same type with MIL-C-38999 Series IV They are adapt for the strategic and tactical weapons systems, space satellites, the space shuttle, space station and space probes, high fever industrial equipment, the connection between the signal line of communication and testing system, it also can be widely used in various mechanical equipments and signal transmission system. Products have high-density joints, light weight and so on merits. Their coupling type is bayonet lock, easy for use, rapid inserting, complete specifications, receptacle sealed and their mounting styles are flange and nut fixed. With dust, rain and blind-insert resistance and anti - electromagnetic interference charactericts.
use environmental conditions
Relative temperature : -65 ° C ~ +125° C
Relative Humidity : when40 ± 2 ° C, up to 92% ± 98%
Operating Pressure : 101.33KPa ~ 4.4kPa
Sin Vibration: vibration frequency 10Hz ~ 2000HZ, acceleration 294m/s2
Random Vibration : power spectrum 0.6g2/Hz
The total rms ＆#118alue of 28.4G
Impact : acceleration 2940m/s2
The main technical characteristics
|
|
Φ1 |
Φ1.5 |
Φ3.5 |
|
|
5 |
10 |
50 |
|
|
≤5 |
≤3 |
≤2 |
Insulation resistance
|
standard air pressure |
humidity |
high temperature |
|
≥5000MΩ |
≥50MΩ |
≥1000MΩ |
Voltage resistance
|
|
AC 1300Vrms |
|
|
AC 375Vrms |
|
|
AC 200Vrms |
Sealing
Irrigation sealed plastic socket is not less than 196kPa

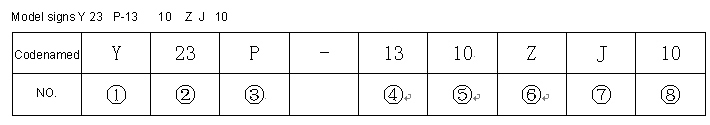

① Circular Connector
② design NO.
③ type : P-soldered shielding glue sealing, E-pressure connecting shielding
④ Shell NO.: 13,25,29
⑤ Q’ty of contact : 10,61,84,90
⑥ Connector categories: T-Plug, Z-receptacle
⑦ Contacts type : J-pin, K-jack
⑧ mounting styles : 10-square flange 11-Round-panel 14-And bear nuts
shape and installation size

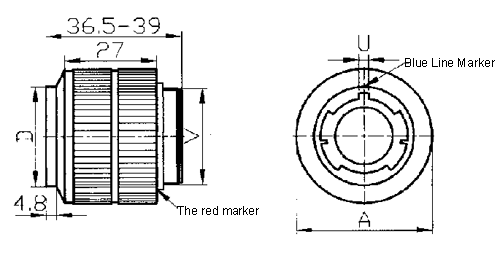

Plug
|
Shell NO. |
13 |
25 |
29 |
|
A |
ф31.1 |
ф49.9 |
ф59.5 |
|
D |
ф22.9 |
ф41.9 |
ф52 |
|
V |
M18×1 |
M37×1 |
M48×1 |
|
U |
2～3 |
3.5～4.5 |
3.8～5 |

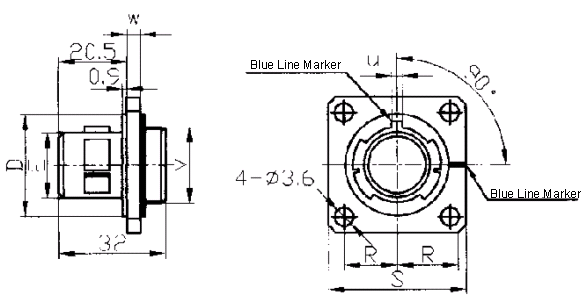

receptacle
|
Shell NO. |
13 |
25 |
29 |
|
D |
ф23.3 |
ф42.4 |
ф52 |
|
E |
ф16 |
ф35.1 |
ф45 |
|
R |
11.5 |
19.1 |
24 |
|
S |
29.1 |
46.6 |
56.5 |
|
u |
1.6 |
3.1 |
3.6 |
|
V |
M18×1 |
M37×1 |
M48×1 |
|
W |
2.5～3 |
3～3.4 |
3～3.4 |
Accessories
Shielded cables coatY23 - ××00 50
|
Shell NO. |
13 |
25 |
29 |
|
L |
55 |
95 |
115 |
|
H |
ф7 |
ф20 |
ф25 |
|
C |
ф23 |
ф42.5 |
ф53.5 |

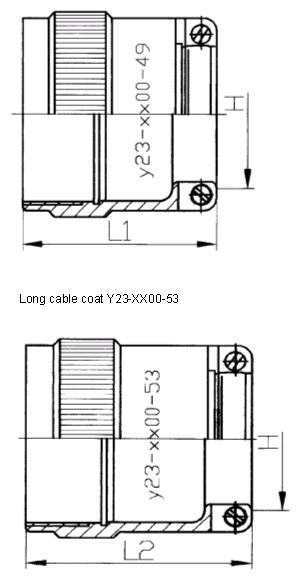

small cable coatY23 - ××00 49
|
Shell NO. |
13 |
25 |
29 |
|
L1 |
25.5 |
44.5 |
50 |
|
L2 |
31 |
67 |
80 |
|
H |
ф7 |
ф24 |
ф38 |

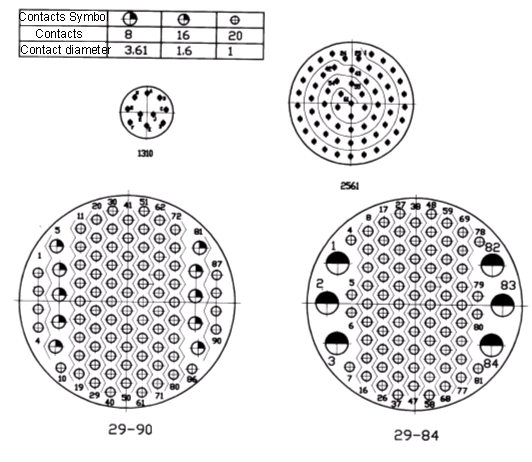

Y23Contacts Hole arrangements
te : This map -- connector jacks face to face up to a interpolation map |
