NDT Circular Electric Connector for Nondestructive test equipment
Details：

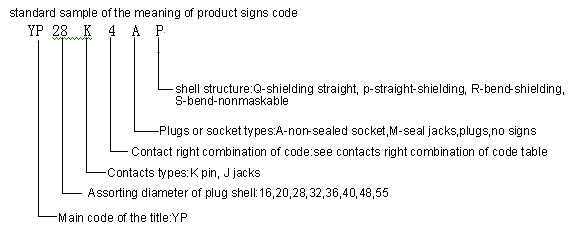

YP-type connector is renewed by the old product. It is the most ideal product which can replace P-type directly. It added more kinds of Jiedianxinpu. It has small bulk, light weight, quick coupling and so on advantages. The product is divided into shielding and non-shielding. The shielding receptacle is used in the environment that request high sealing. It has shielding and non-shielding structures. The users can scheme the cables according to their needs. The product has complete specifications. Their contact diameter: 1,1.5,2.5,3.5,5,5.5 (mm). Five kinds altogether. To adapt different work environment, work current is big and the biggest rated current is 100A. To adapt the big current, the pinholes are all gold plated and its ability of contact is good. Mounting size corresponds to the P-type. Its mark can add a Y in front of P-type. (Very few have minor changes).
conditions of use environment
Relative temperature : temperature of -40 ° C to +85 C.
Relative Humidity : humidity of 40 ± 2 ° C up to 95% ± 3%
Working Pressure : 99.99KPa
Vibration : vibration frequency of 10Hz ~ 2000HZ, acceleration 147m/s2
Impact : acceleration 735m/s2
Centrifugal : acceleration 245m/s2
The main technical characteristics
|
|
1 |
1.5 |
2.5 |
3.5 |
5.5 |
7 |
9 |
10 |
|
|
5 |
10 |
25 |
50 |
100 |
120 |
150 |
200 |
|
|
≤6 |
≤4 |
≤1.5 |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
Insulation resistance : under normal conditions is not less than 1,000 M Ω
RMS : under normal conditions exchange 1500V
Sealing : sealing connectors to the following conditions should remain sealed
At a temperature of 20 ± 5° C, electricity load conditions, poor internal and external pressure to 80Kpa
At a temperature of 55 ° C, rated load conditions, poor internal and external pressure to 60Kpa
Mechanical life-span : Plug 500
Implementing standards : Q/321283LSB01-2004 "Y (T) P series of circular connector"

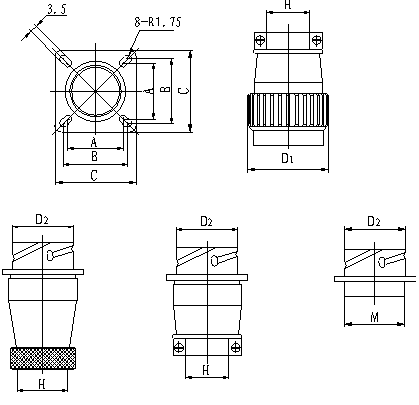

shape and installation size
|
|
installation size |
|
A |
B |
ΦH |
M |
C |
ΦD1 |
ΦD2 |
|
YP16 |
18 |
18 |
7 |
16X0.75 |
25 |
25.4 |
18.5 |
|
YP20 |
22 |
24 |
12 |
21X0.75 |
31 |
31 |
22.7 |
|
YP28 |
26 |
28 |
20 |
28X1 |
38 |
38 |
28.7 |
|
YP32 |
26 |
28 |
20 |
28X1 |
38 |
38 |
28.7 |
|
YP36 |
34 |
36 |
26 |
36X1 |
46 |
46 |
36.7 |
|
YP40 |
34 |
36 |
26 |
36X1 |
46 |
46 |
36.7 |
|
YP48 |
49.5 |
52 |
40 |
50X1 |
63 |
60 |
50.7 |
|
YP55 |
49.5 |
52 |
40 |
50X1 |
63 |
60 |
50.7 |

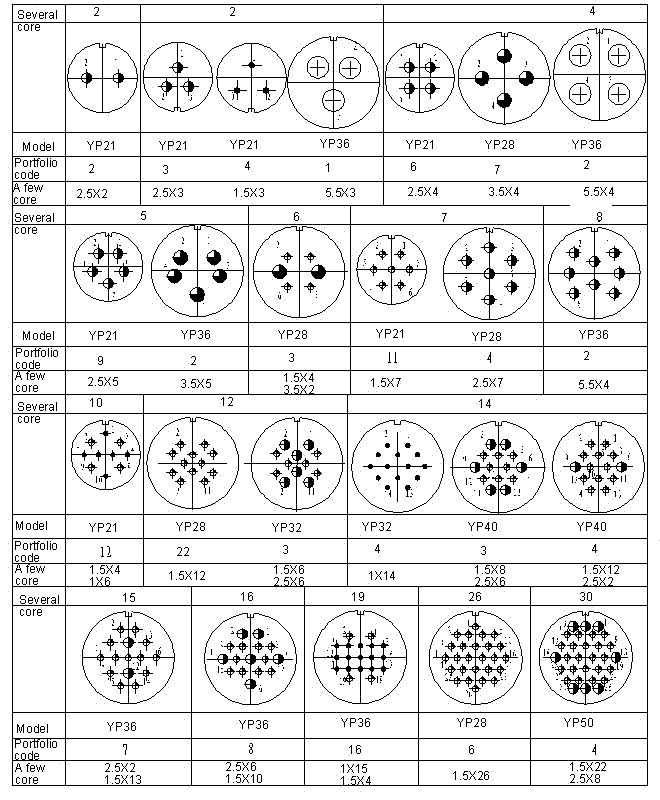

YP contact-type spectra
|
