NDT Circular Electric Connector for Nondtestructive test quipment
Details：
The product conform to GJB101A-97 standard, which can also make cooperation in use with the same electric current series of receptacle.
Products are coupled by bayonet, quickly connected, resistance to the environment, and can be applied to the big electric current serious.
1、 Freedom Alliance2、 Main code of the title : Y-round Connector
3、 design NO. : 50-number
4、 Category : D-Series products on behalf of Power
5、 Structure : X-general welded, P-shielded welding plastic closures
6、 Shell NO.: 12,14,16,18,20,22,24,32, D4
7、 Q’ty of contact: installation of insulation board-ranked No. Kong
8、 Plugs categories : T-Plug, Z-socket
9、 Contacts type : J-pin, K-jack
10、mounting styles of receptacle: 10-square flange 11-round flange 14-nut tight fight
10-2-square-reel cable enclosures S-Block Wall
Plug forms : 1-grounding compress 2-line folder plate 3-closure SR-4-tensile
5-90 ∑ elbow, F-waterproof-, 8-line folder shielding plate
11、position of the insulated plates : I, II, III, IV, V, which does not write "
conditions of use environment
Relative temperature :-55∩ⅵ+125∩
Relative Humidity : when 40 2 ∑ C up to 90% ~ 95%
Operating Pressure: 101.33KPa ~ 1.33Pa
Sin Vibration: vibration frequency 10Hz ~ 2000HZ, acceleration 196m/s2
Impact : acceleration 980.7 m/s2
Collision : acceleration 392 m/s2
Resisting strength : AC 1500V
Airtightness : General socket is not more than 6 10-2Pal / s
Electrical characteristics
Contacts Characteristics
|
Contact diameter
（mm） |
í2.0 |
í2.5 |
í 3 |
í3.5 |
í 4 |
í 5 |
í 6 |
í7 |
í10 |
|
Working current（A） |
20 |
25 |
40 |
50 |
60 |
75 |
90 |
100 |
200 |
|
contact resistance（m） |
÷1 |
÷1 |
÷1 |
÷1 |
÷1 |
÷1 |
÷1 |
÷1 |
÷1 |
Insulation resistance : under normal atmospheric conditions not less than 3000M
Under the conditions of high temperature of not less than three M
Humid conditions is not less than 100 M
Life expectancy : Plug 500
Implementing standards : Q/321283LSB04-2006 "Y50 series of circular connector --"
Features
1, 5 Keys system can avoid mis-mating to ensure a correct interpolation.
2, adopt spiral keyway with clamps, which can check the plug and receptacle whether insert a right place by visually and hearing feelings.
3, three clamps installed on the surface of the receptacle (circumferential and even distributing) enter into the corresponding spiral keyways for receptacle connecting ,to the bottom of the keyway, “da” sound of the clamp heard, suggest that plugs in the right place which ensures connector absolutely locking.
Mis-mating
Keyways with different angles on the external of the insulation, can be assembled by the producer according to the users’ needs to guarantee the plugs and receptacle with same categories will not be mistakenly inserted. So the same species to the same specifications assembly serial numbers corresponding to the plug and receptacle can be inserted. Different keys assembly corresponding number of plugs and receptacle can not be inserted.
|
|
4 keyway installation mother I |
I bond with the main point |
|
グ |
V |
155∑ |
|
ケ |
Y |
95∑ |
|
ゲ |
I |
0∑ |
|
コ |
L |
100∑ |
|
ゴ |
T |
150∑ |

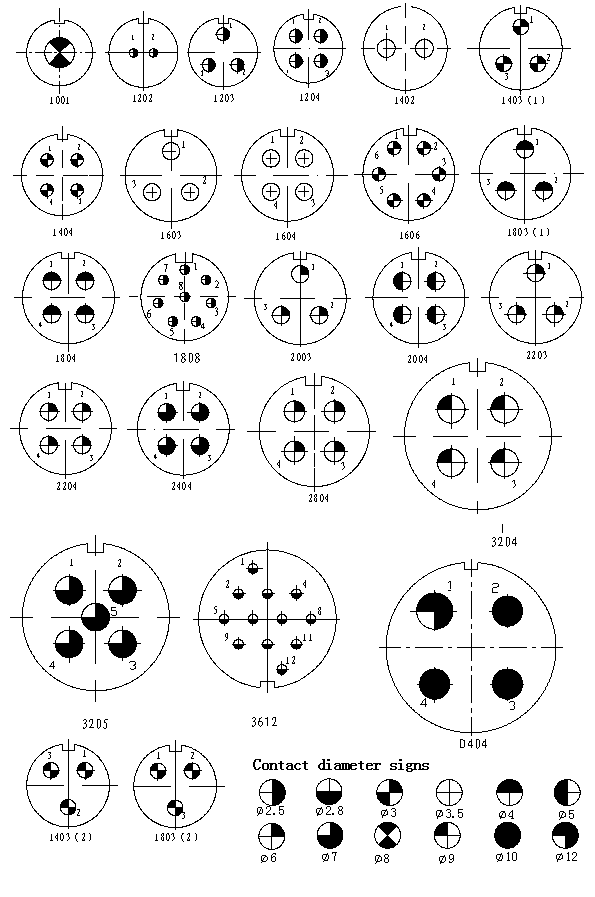

The installation of insulation board with Holes
Y50DX installation of insulation board from the hole - with a surface interpolation see the installation of insulation board pin-hole

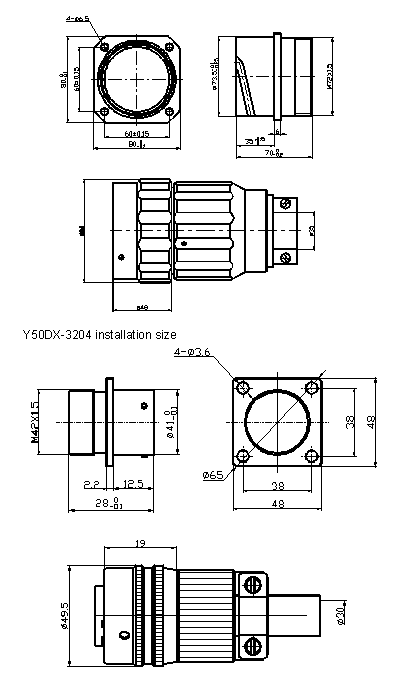

Installation size Y50DX see Sealed
A : plug and socket compatible, such as needle loaded plugs and sockets should choose loaded Kong, and vice versa
B plug and socket with the best choice of a surface coated casing, the casing of the black color selection, Army green or electroless nickel
D404 plugs installed Block Size
